V4-P3-C1-T5 bagged daily KIT
Function introduction：
Hte 2022 new model has 8 solenoid valves with faster lifting speed.
Remote firmware upgrade the latest system.
2022 apple apps can be controlled by voice.
Lcd display air pressure remote control handle.
Four wheels rise and fall separately.
Front and rear wheels rise and fall separately.
Four wheels go up and down together.
Air tank pressure can be set.
Air compressor control switch.
There are three gear height settings.
Wireless bluetooth controls the mobile app.
Lt can rise automatically after starting the car.
He will descend automatically after shutting down the car.
Menu page has multiple language options.
New quiet compressor.
No weld extrusion air tank.
Automatic filter drainer.
Approximate power cord Kit (supporting 2pc press at the same time).
Self sealing gasket joint.
Warranty period 1 year
Length:800mm
Width:450mm
Height:200mm
Net Weight：16KG
Gross Weight：18KG

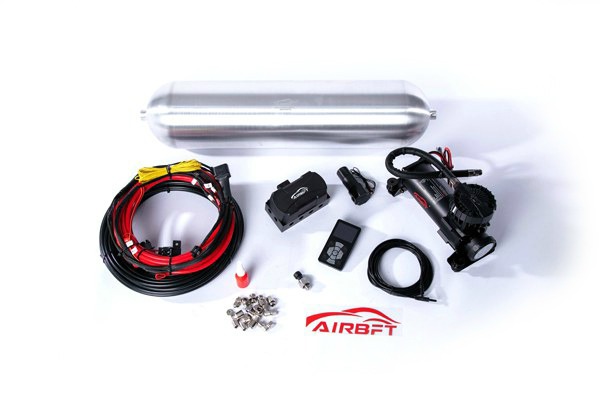

Packing list：
VALVE BLOCK MODULE·················································x1
COMTROLLER WIRE HARNESS·····································x1
TOUCHPAD CONTROLLER·············································x1
TOUCHPAD CONTROLLER WIRE HARNESS··············x1
TANK PRESSURE SENSOR···············································x1
MUFFLER··············································································x2
AIR COMPRESSOR（QUIET）·········································x1
AUTO WATER SEPARATOR·············································x1
AIR TANK T5（160x730L）··············································x1
C1 BRACKET KIT（AL ALLOY）········································x1
200 AMP POWER SUPPLY KIT·········································x1
WHOLE VEHICLE TRACHEA（8mmx200cm）·············x1
CONTROL SYSTEM AIR PIPE CONNECTOR··················x1
GLUE·······················································································x1
PIPELINE SCISSORS·····························································x1
